CG1000 Series Rental LED Screen

1000mm LED Display Cabinet
P1.953mm, P2.5mm, P2.604mm, P2.976mm, P3.91mm, P4.81mm
Detachable Back Cover Box
Support Right Angle Installation for CG500
Indoor & Outdoor Available
Front or Rear Dual Maintenance for CG500

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

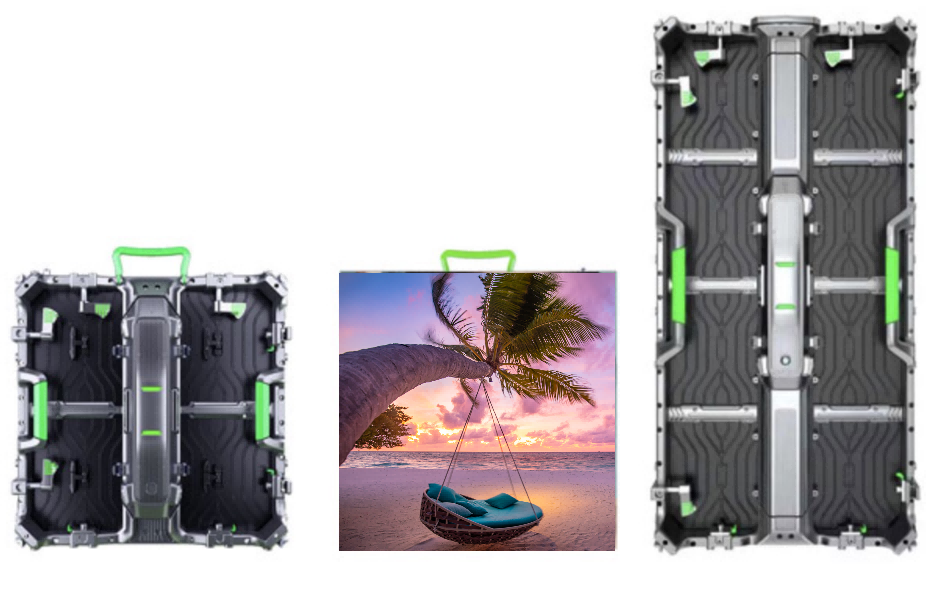

CG500/1000 Series Rental LED Screen

CG500/1000 series rental LED display new design incorporates many aesthetic elements, adopts High strength die-casting aluminum,

only 7.5kg per cabinet, and better performance with high-definition visual display.

Lightweight and Thin

Portable and good stability with a weight of 7.5kg and thickness of 80mm. The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.

Perfect Structure

CAP has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies.
Innovative structural design, and avant-garde body lines, give you an extraordinary experience.

Support Right Angle Installation

Supports 90° right angle LED display installation to meet some special buildings and applications.

Detachable Back Cover

Adopts optimized control box with quick removable without any tools optional.

The back box (includes power supply and control cards)
is removable quickly for replacement and maintenance.

Front & Rear Maintenance

CAP LED CG500 Series rental LED display is a dual maintenance product, not only 100% front accessible but also can do rear service.
The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor!

Seamless Display and Better Visual Effects

High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience.

The picture quality confronts viewers with an entirely new sensory experience.

Curved Installation

To cater to the diverse requirements in the field of LED screens, the CG500/1000 series LED display is also available for curved screen after adding curved lock.

It can achieve 2.5° at intervals within the range of -10° to 10°, enabling both convex and concave configurations.

Multi Installation Way of Cabinet

Support 3 installation ways of cabinet with hanging installation, concave& convex installation, and stack installation.

indoor series specification

Item	Parameter	Value								Unit
Module	Pixel Pitch	1.953	2.604	2.97	3.91	1.953	2.604	2.97	3.91	mm
	LED Type	SMD1212	SMD1212	SMD1515	SMD2121	SMD1212	SMD1212	SMD1515	SMD2121	/
	Module Size(WxH)	250x250	250x250	250x250	250x250	250x250	250x250	250x250	250x250	mm
	Pixel Per Module	128x128	96x96	84x84	64x64	128x128	96x96	84x84	64x64	Dots
	Module Weight	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	Kg
Panel	SIze(WxHxT)	500x500x80mm				500x1000x80mm				mm
	Pixels	256×256	192×192	168×168	128×128	256×512	192×384	168×336	128×256	dots
	Material	Die casting aluminum				Die casting aluminum				/
	Weight	7	7	7	7	13	13	13	13	Kg
	Brightness	800	800-1300	800-1300	1300	800	800-1300	800-1300	1300	nit
	Arc Lock	standard / +/-5°								°
	Processing depth	14	14	14	14	14	14	14	14	bit
	Display refresh rate	3840-7680								Hz
	Color Temperature	3200~9300								K
	Viewing angle(H)	140								deg.
	Viewing angle(V)	140								deg.
Application	AC Operating Voltage	100~240								V
	AC Input Frequency	50/ 60								Hz
	Power Consumption (Max./Avg.)	550/175	550/175	550/175	550/175	550/175	550/175	550/175	550/175	W/m2
	Storage Temperature	﹣40~﹢60								℃
	Operating Temperature	﹣10~﹢40								℃
	Storage Humidity	10﹪~90﹪								RH
	Operating Humidity	10﹪~90﹪								RH
	IP Rating (Front/Rear)	IP41/IP21								/
	Module Maintenance	Front/Rear								/
	PSU & Others Maintenance	Front/Rear								/
	Panel Installation Type	Front Installation								/

Outdoor series specification

Item	Parameter	Value						Unit
Module	Pixel Pitch	2.97	3.91	4.81	2.97	3.91	4.81	mm
	LED Type	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020	/
	Module Size(WxH)	250x250	250x250	250x250	250x250	250x250	250x250	mm
	Pixel Per Module	84x84	64x64	52x52	84x84	64x64	52x52	Dots
	Module Weight	0.6	0.6	0.6	0.6	0.6	0.6	Kg
Panel	SIze(WxHxT)	500x500x85mm			500x1000x85mm			mm
	Pixels	168×168	128×128	104×104	168×336	128×256	104×208	dots
	Material	Die casting aluminum						/
	Weight	7	7	7	13.5	13.5	13.5	Kg
	Brightness	3500-6500						nit
	Arc Lock	standard / +/-5°						°
	Processing depth	14						bit
	Display refresh rate	3840-7680						Hz
	Color Temperature	3200~9300						K
	Viewing angle(H)	140						deg.
	Viewing angle(V)	140						deg.
Application	AC Operating Voltage	100~240						V
	AC Input Frequency	50/ 60						Hz
	Power Consumption (Max./Avg.)	750/250						W/m2
	Storage Temperature	﹣40~﹢60						℃
	Operating Temperature	﹣10~﹢40						℃
	Storage Humidity	10﹪~90﹪						RH
	Operating Humidity	10﹪~90﹪						RH
	IP Rating (Front/Rear)	IP65						/
	Module Maintenance	Front/Rear						/
	PSU & Others Maintenance	Front/Rear						/
	Panel Installation Type	Front Installation						/

Cabinet Size	Cabinet Qty	Dimension
500*500mm	6in1	L760W580H730mm
500*500mm	8in1	L980W580H730mm
500*500mm	10in1	L1200W580H730mm
500*1000mm	4in1	L1100W530H730mm
500*1000mm	6in1	L1100W760H730mm
500*1000mm	8in1	L1100W980H730mm
